$3,499.00

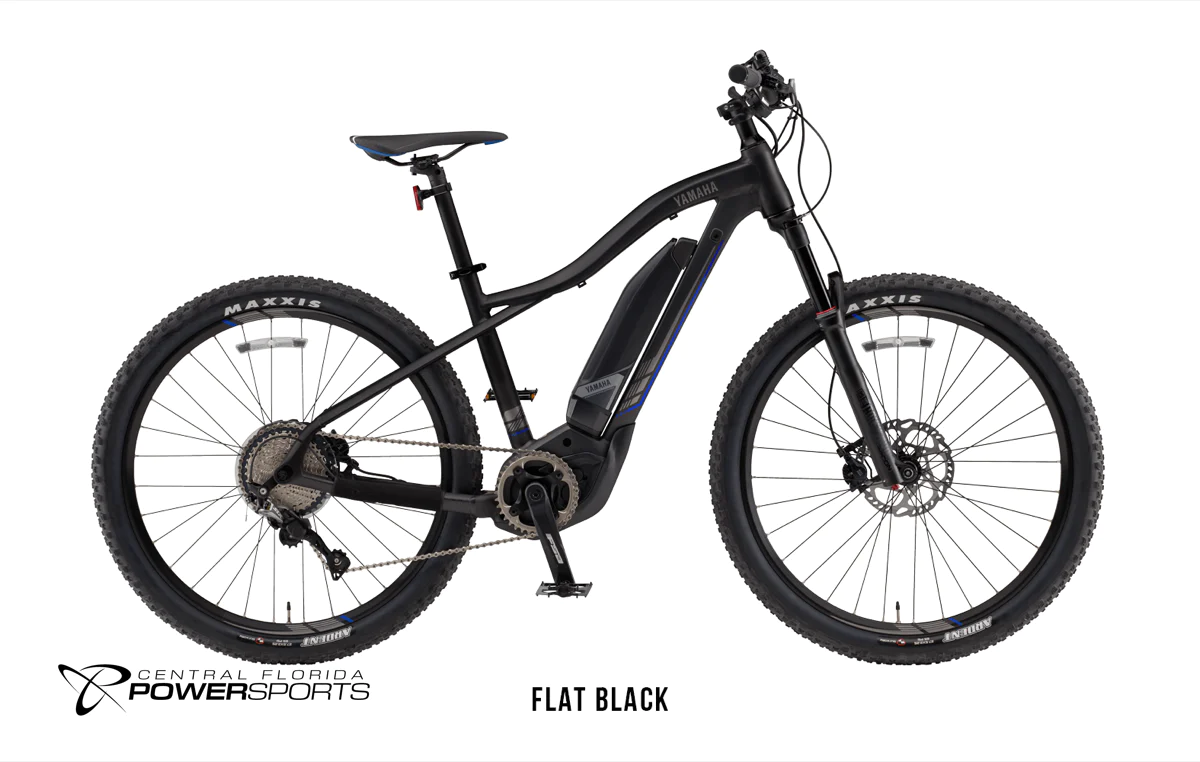

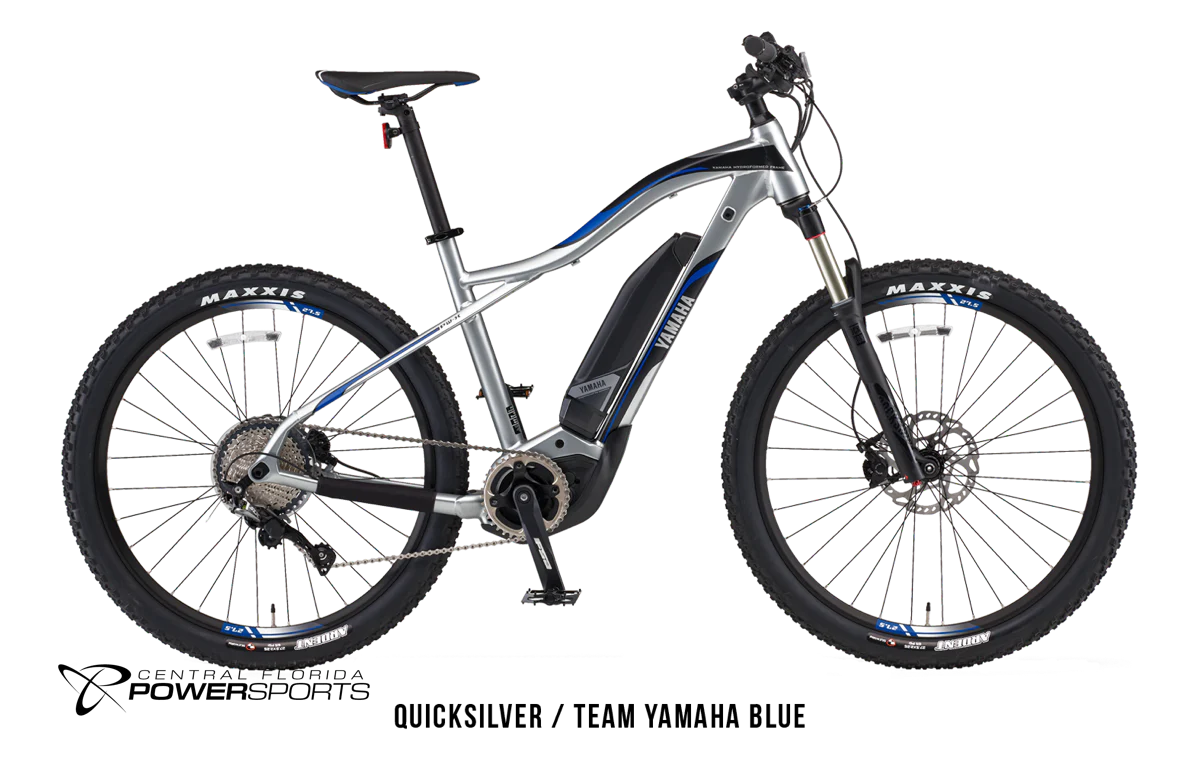

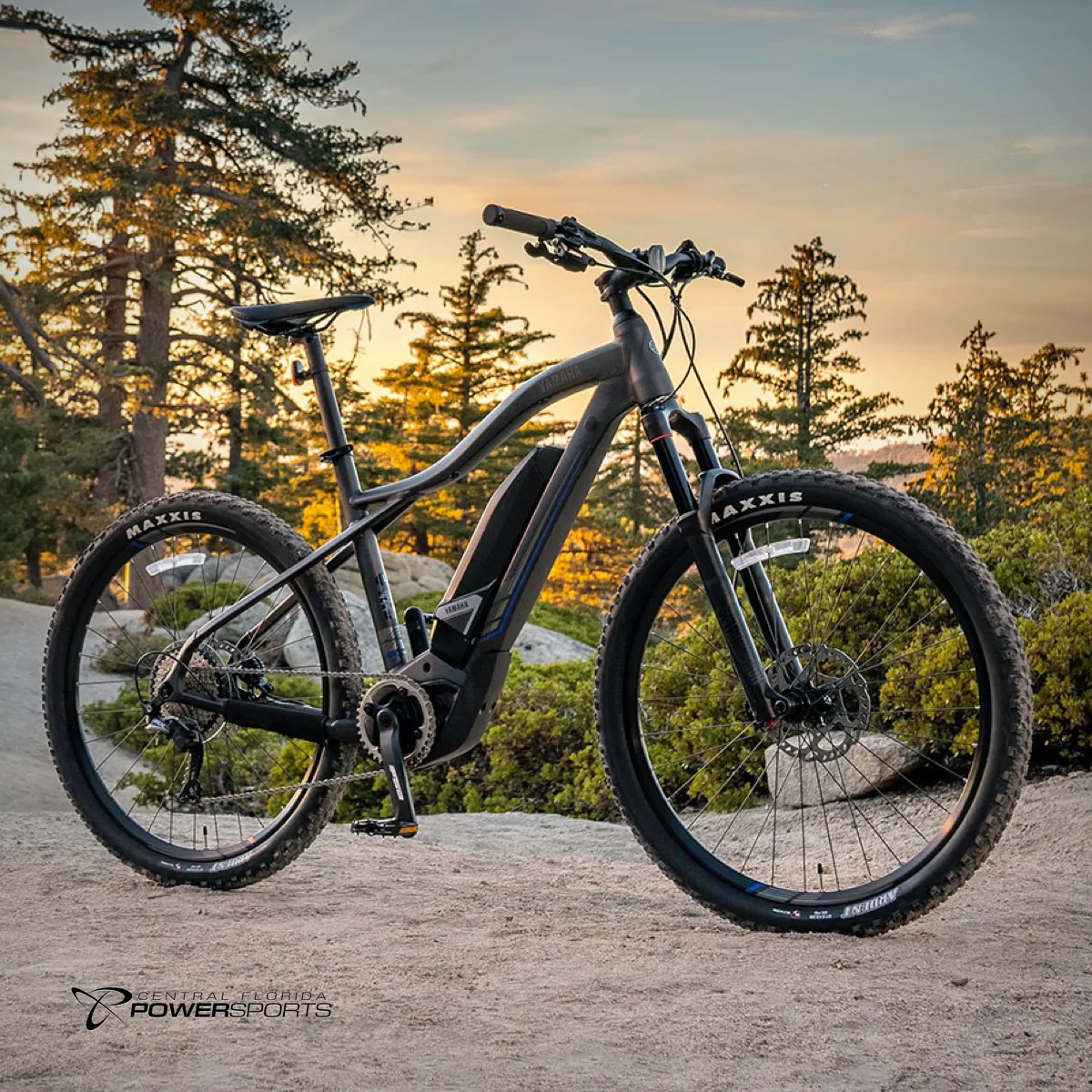

Yamaha YDX Torc

Snapshot

0 Mile(s)
New

Central Florida PowerSports

(407) 847-2453

2575 North Orange Blossom Trail, Kissimmee, FL, USA
Contact Dealer
Condition New
Type eBike
Make Yamaha
Model Yamaha YDX Torc
Year N/A
Mileage 0
Condition New
Type eBike
Make Yamaha
Model Yamaha YDX Torc
Year N/A
Mileage 0

YAMAHA YDX-TORC

No need to load an eMTB onto your car to ride that hero dirt on your local trails. Adventure begins at the end of the driveway with electric pedal assist that will get you to the singletrack and up the most giant climbs. Explore new routes and take the long-way home. You’ll be back before you know it.



SPECS

  • SUGGESTED USE
    XC Trail, Mountain
  • SIZE
    15″ (S), 17″ (M), 19″ (L)
  • TOTAL WEIGHT
    46.7lb (M)
  • MOTOR
    PW-X
    Center mount
    ISIS splined spindle
    Triple Sensor System with integrated speed sensor as part of rear hub
    Weight: 6.83lb
    Rated power: 250W (Nominal), 500W (Max)
    Max torque: 80Nm
    Max cadence support: 120rpm
    Max speed support: 20mph
    Support modes: ECO+, ECO, STANDARD, HIGH, EXPW
    Protective motor cover included
  • CONTROL SWITCH AND MULTI-FUNCTION COMPUTER
    Computer control functions include: (5) Power-level control switch, stop watch, distance units, power-level LED on/off, Bluetooth™ connectivity, USB power, USB connectivity, cycling function display items, time adjustment, 3-color LED power assist level light indicator
    Cycling function display include: speed, average speed, maximum speed, trip distance, odometer, cadence, battery capacity (%)
  • BATTERY
    Yamaha 500Wh with Charge-life indicator and Self-diagnosis display
    Side-exiting dock station with anti-vibration mounting plate
    Weight 6.61lb
    500Wh 36V
    4-hour charge time
  • FRAME
    Yamaha hydroformed and butted alluminum tubing
    Tapered headtube
    Internal cable/housing routing
    Additional mounts for external dropper post compatibility 2-bolt motor mount
    12 x 142 rear spacing
    Integrated speed sensor harness
  • FORK
    RockShox Recon RL 120mm travel, 15mm Maxle™ , Remote lock-out lever.
    Tapered aluminum steerer, 1 1/8in – 1 1/2in
  • HEADSET
    Integrated tapered headset with 30mm headset spacers
  • STEM
    Yamaha Alloy 4-bolt faceplate
    31.8 diameter
    60mm length
  • HANDLEBAR
    Alloy 20mm riser bar
    31.8mm diameter
    730mm width
  • GRIPS/TAPE
    Locking Dual Core
  • SEATPOST/SADDLE CLAMP
    Alloy 30.9 x 300mm (S), 330mm (M), 380mm (L) with 2-bolt adjustable tilt saddle rail clamp
  • SEATPOST COLLAR
    Quick-Release Lever 35.0mm
  • SADDLE
    Yamaha Plus Cro-Mo Rails
  • SHIFTERS
    Shimano SLX
    11-speed
  • FRONT DERAILLEUR
    N/A
  • REAR DERAILLEUR
    Shimano SLX GS Shadow +
  • CRANKARM
    FSA ISIS
    170mm
  • CHAIN
    KMC X11e
  • CASSETTE
    Shimano SLX
    11-speed
    11/42T
  • CHAINRING(S)
    Praxxis Wave 36T 104 BCD
  • BRAKES/ROTORS
    Shimano SLX
    180mm SM-RT68 Centerlock Rotors
  • RIMS
    27.5in.
    Welded and pinned Rim
    Eyelet spoke holes
    Width: 26mm (OUTSIDE) 21mm (INSIDE)
  • SPOKES
    Spokes SUS304
  • SPOKE NIPPLES
    Brass
  • HUBS
    Anodized
    Centerlock brake mount
    Front hub 15 x 100 TA, rear hub 12 x 142 Shimano freehub and Yamaha Bicycles Speed Sensor
  • TIRES/TUBES
    Maxxis Ardent 27.5 x 2.25in
    Silkworm puncture protection under tread
    PV tube
  • ACCESSORIES
    Yamaha keys Yamaha battery
    charger
    Bell
  • WARRANTY
    3-Year on Frame, Motor, Battery* Component Manufacturer’s warranty** is supported by Yamaha



SIZING & FIT



GEOMETRY
