$3,499.00

Yamaha Wabash

Snapshot

0 Mile(s)
New

Central Florida PowerSports

(407) 847-2453

2575 North Orange Blossom Trail, Kissimmee, FL, USA
Condition New
Type eBike
Make Yamaha
Model Yamaha Wabash
Year N/A
Mileage 0
Condition New
Type eBike
Make Yamaha
Model Yamaha Wabash
Year N/A
Mileage 0

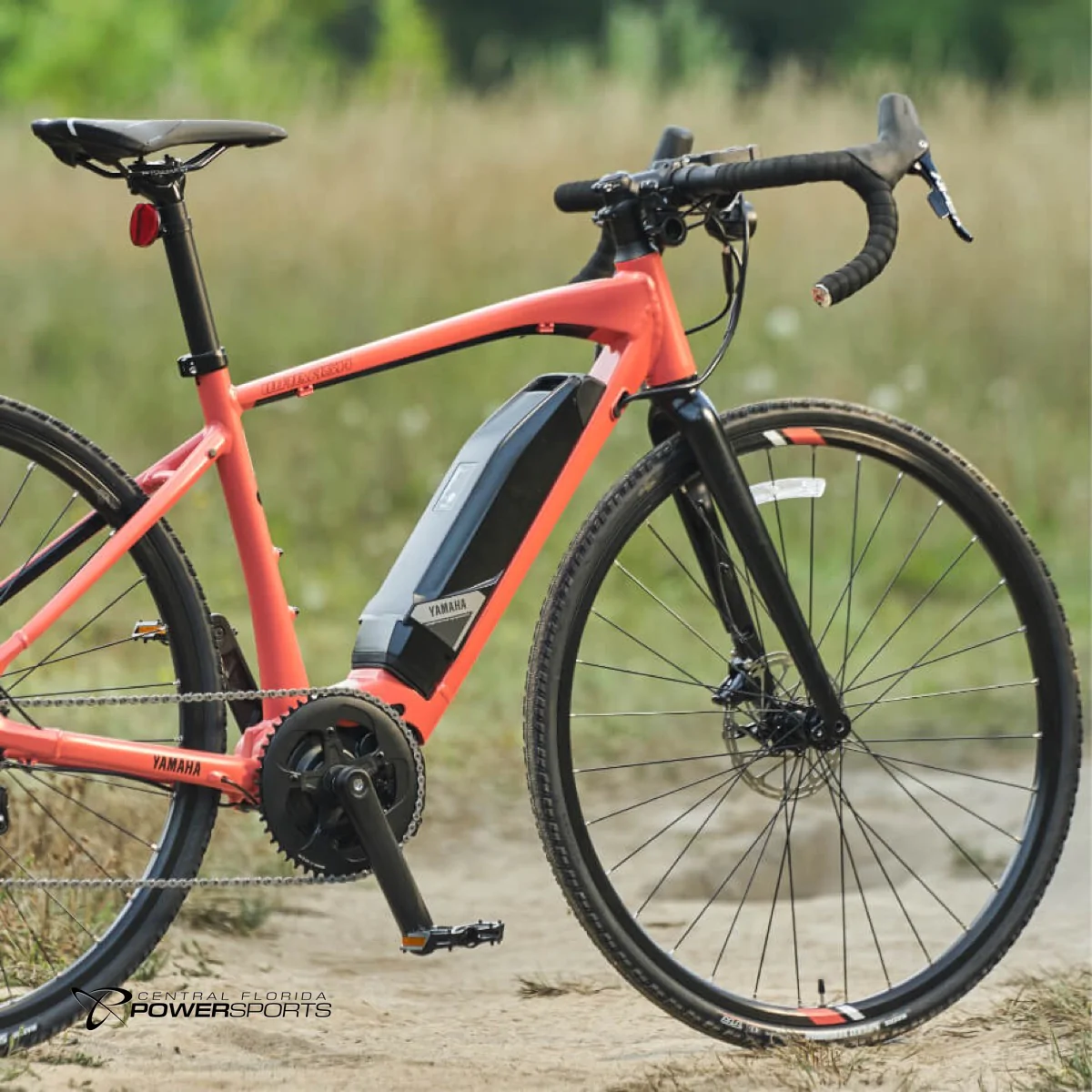

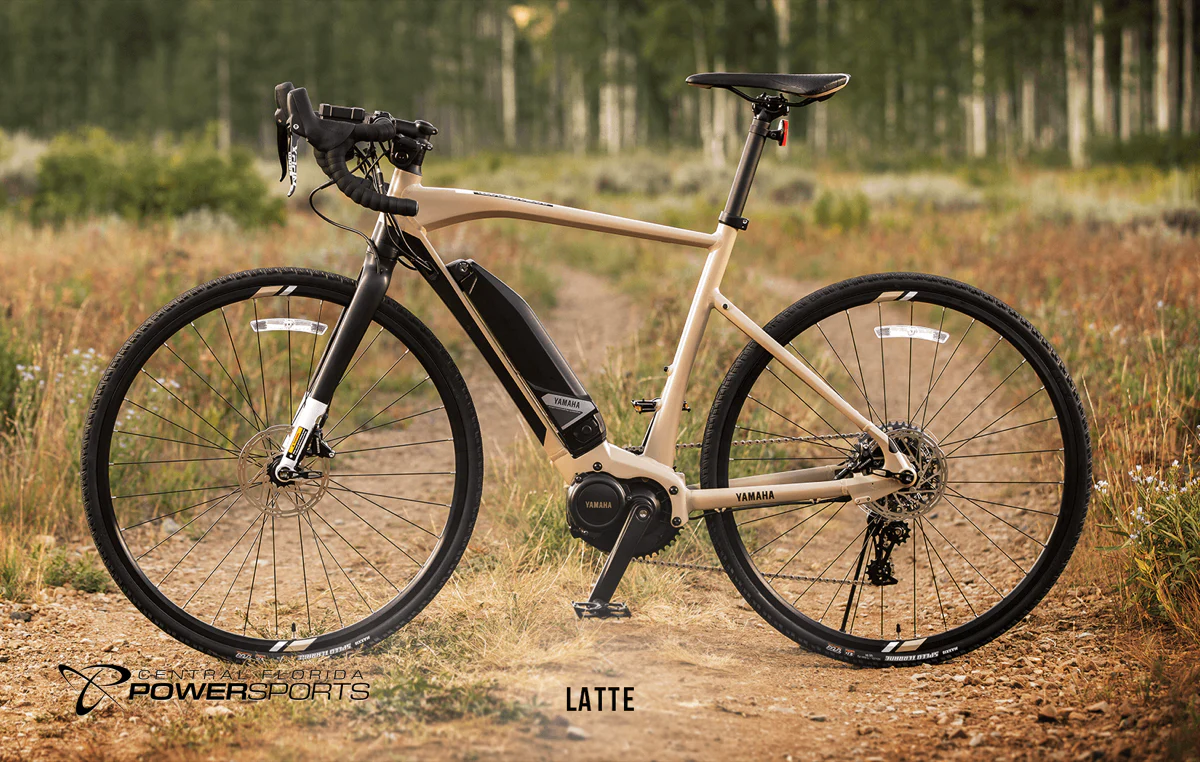

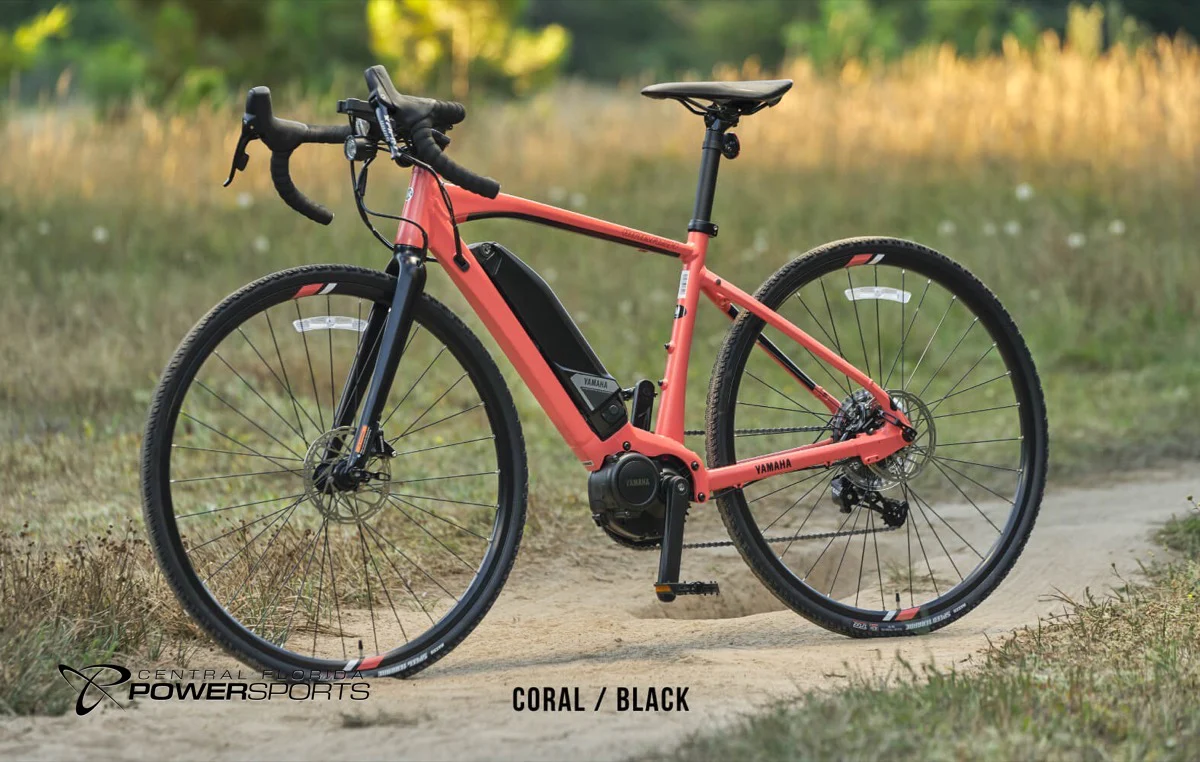

YAMAHA WABASH

Impervious to terrain conditions, the Wabash is the bicycle equivalent to the word “and”. Road and Mountain. Pedal and Power. Man and Machine. Rock and Roll!



SPECS

  • SUGGESTED USE
    Gravel, Road, Adventure
  • SIZE
    53cm (S), 55cm (M), 58cm (L)
  • TOTAL WEIGHT
    42.3lbs (L)
  • MOTOR
    PWSeries SE
    SE 3-bolt mount
    Square taper spindle
    Triple Sensor System with integrated speed sensor as part of rear hub
    Weight: 7.71lb
    Rated power: 250W (Nominal), 500W (Max)
    Max torque: 70Nm
    Max cadence support: 110rpm
    Max speed support: 20mph
    Support modes: ECO+, ECO, STANDARD, HIGH
  • CONTROL SWITCH AND MULTI-FUNCTION COMPUTER
    Computer control functions include: (4) Power-level control switch, stop watch, distance units, power-level LED on/off, Bluetooth™ connectivity, USB power, USB connectivity, cycling function display items, time adjustment, LED headlamp power on/off, 3-color LED power assist level light indicator
    Cycling function display include: speed, average speed, maximum speed, trip distance, odometer, cadence, battery capacity (%)
  • BATTERY
    Yamaha 500Wh with Charge-life indicator and Self-diagnosis display.
    Side-exiting dock station with anti-vibration mounting plate
    Weight 6.61lb
    500Wh 36V
    4-hour charge time
  • FRAME
    Yamaha hydroformed aluminum
    Internal cable/housing routing
    Accessory mount
    Fender and Rack compatible
    3-bolt motor mount
    12 x 142 rear spacing
    Integrated speed sensor harness
  • FORK
    One-Piece Aluminum
    12x100mm Thru-Axle
    Fender compatible
    Internal brake hose routing
  • HEADSET
    Integrated headset with 30mm headset spacers
  • STEM
    Yamaha Alloy 4-bolt faceplate
    31.8 diameter
    50mm length (S)
    70mm length (M,L)
  • HANDLEBAR
    Flare drop
    31.8mm diameter
    40cm width (S)
    44cm (M,L)
  • GRIPS/TAPE
    Padded cork tape
  • SEATPOST/SADDLE CLAMP
    Alloy 30.9 x 260mm (S), 315mm (M), 350mm (L) with 2-bolt adjustable tilt saddle rail clamp
  • SEATPOST COLLAR
    Alloy 2-bolt 35.0mm
  • SADDLE
    Yamaha Off-Road Cro-Mo Rail
  • SHIFTERS
    SRAM APEX™ 1 HRD
  • REAR DERAILLEUR
    SRAM APEX™ 1
  • CRANKARM
    Square taper
    165mm (S)
    170mm (M,L)
  • CHAIN
    KMC X11e
  • CASSETTE
    SRAM PG-1130
    11-42t
    11-Speed
  • CHAINRING(S)
    SRAM APEX™ 48t
  • BRAKES/ROTORS
    SRAM APEX™ Hydraulic
    160mm Center Lock Rotors
  • RIMS
    32-Hole Dual Channel Welded Pin w/ Eyeleted Spoke
  • SPOKES
    Spokes SUS304
  • SPOKE NIPPLES
    SUS304 w/ brass nipple
  • HUBS
    Front: 12x100mm TA
    Rear: 12x142mm TA with integrated speed sensor
  • TIRES/TUBES
    Maxxis Speed Terrane 700x33c EXO Protection Tubeless Ready PV
  • ACCESSORIES
    Yamaha keys
    Yamaha battery charger
    LED Headlamp
    Bell
    1-piece accessory mount for computer, control switch, bell, headlamp
  • WARRANTY
    3-Year on Frame, Motor, Battery* Component Manufacturer’s warranty** is supported by Yamaha



SIZING & FIT



GEOMETRY
