$2,999.00

Yamaha Cross Connect

Snapshot

0 Mile(s)
New

Central Florida PowerSports

(407) 847-2453

2575 North Orange Blossom Trail, Kissimmee, FL, USA
Contact Dealer
Condition New
Type eBike
Make Yamaha
Model Yamaha Cross Connect
Year N/A
Mileage 0
Condition New
Type eBike
Make Yamaha
Model Yamaha Cross Connect
Year N/A
Mileage 0

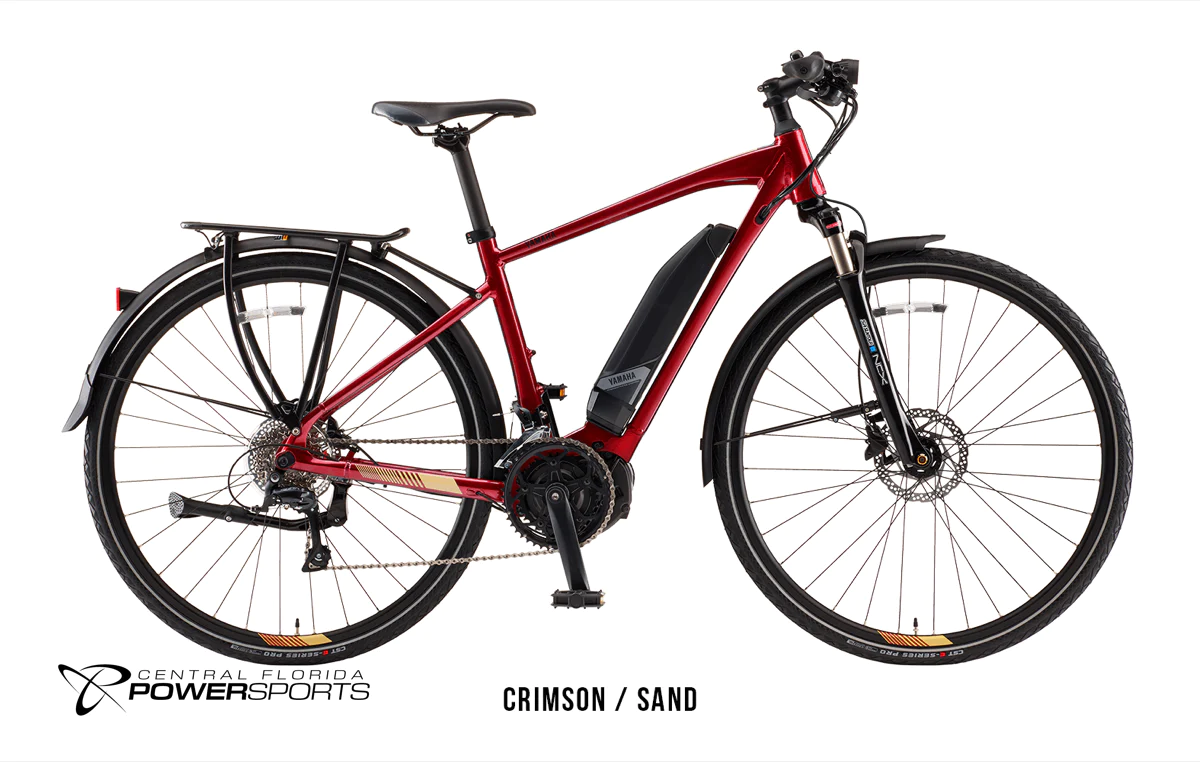

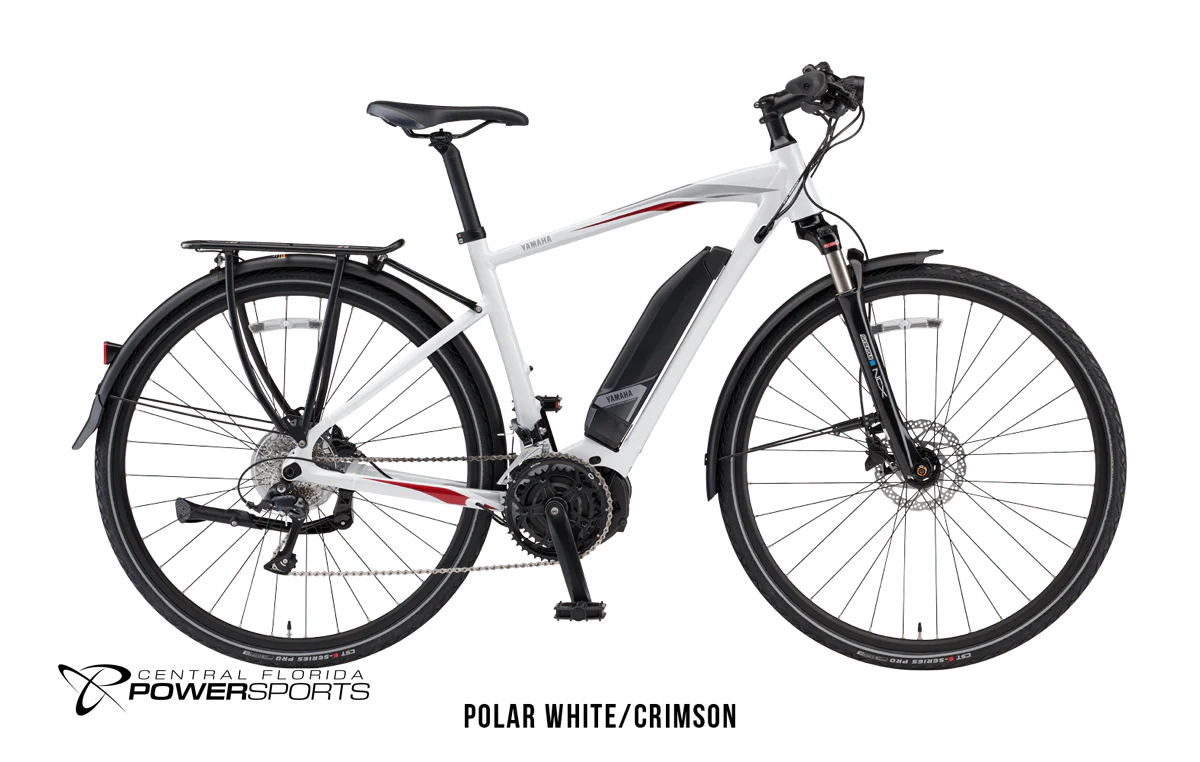

YAMAHA CROSS CONNECT

Only 3 miles to the store, but somehow driving always takes 30 minutes. Redefine routine. Take the eBike! Rip down to the store! Load up the rear-rack and enjoy your new viewpoint behind bars. Pavement or bike path, explore your way.

SPECS

  • SUGGESTED USE
    Road, Urban Bike Path
  • SIZE
    54cm (S), 56cm (M), 58cm (L)
  • MSRP
    $2,999
  • TOTAL WEIGHT
    49.8lb (M)
  • MOTOR
    PWSeries SE
    Center mount
    Square taper spindle
    Triple Sensor System with integrated speed sensor as part of rear hub
    Weight: 7.71lb
    Rated power: 250W (Nominal), 500W (Max)
    Max torque: 70Nm
    Max cadence support: 110rpm
    Max speed support: 20mph
    Support modes: ECO+, ECO, STANDARD, HIGH
  • CONTROL SWITCH AND MULTI-FUNCTION COMPUTER
    Computer control functions include: (4) Power-level control switch, stop watch, distance units, power-level LED on/off, Bluetooth™ connectivity, USB power, USB connectivity, cycling function display items, time adjustment, LED headlamp power on/off, 3-color LED power assist level light indicator
    Cycling function display include: speed, average speed, maximum speed, trip distance, odometer, cadence, battery capacity (%)
  • BATTERY
    Yamaha 500Wh with Charge-life indicator and Self-diagnosis display
    Side-exiting dock station with anti-vibration mounting plate
    Weight 6.61lb
    500Wh 36V
    4-hour charge time
  • FRAME
    Yamaha hydroformed and butted alluminum tubing
    Internal cable/housing routing
    Accessory mount
    3-bolt motor mount
    12 x 142 rear spacing
    Integrated speed sensor harness
  • FORK
    SR Suntour NCX 63mm, mechanical lock-out, 30mm stanchion, magnesium lowers, adjustable air sleeve Alloy 1 1/8in steerer, 15mm thru-axle
    Fender included
  • HEADSET
    Integrated headset with 30mm headset spacers
  • STEM
    Yamaha Alloy 4-bolt faceplate 31.8 diameter
    80mm length (54cm, 56cm)
    100mm length (58cm)
  • HANDLEBAR
    Alloy flat bar zero degree rise. 31.8mm diameter. 640mm width.GRIPS/TAPE Locking ergonomic two-tone
  • SEATPOST/SADDLE CLAMP
    Alloy 30.9 x 260mm (S), 315mm (M), 350mm (L) with 2-bolt adjustable tilt saddle rail clamp
  • SEATPOST COLLAR
    Alloy 2-bolt 35.0mm
  • SADDLE
    Yamaha Path Plus Cro-Mo Rails
  • SHIFTERS
    Shimano 9-speed Sora trigger shifter. Gear selection window
  • FRONT DERAILLEUR
    Shimano Sora (2 x 9) Braze-on
  • REAR DERAILLEUR
    Shimano Sora RD-3000 GS 9-speed
  • CRANKARM
    Square taper
    165mm (S)
    170mm (M)
    170mm (L)
  • CHAIN
    KMC X9e
  • CASSETTE
    Shimano 9-speed
    11/30T
  • CHAINRING(S)
    46/34T 110 BCD
  • BRAKES/ROTORS
    Shimano M315 Hydraulic Disc 160mm Front:6-bolt SM-RT 56 Rotor. Rear: Shimano SM-RT68 Centerlock Rotor
  • RIMS
    700c. Dual channel welded pin rim Eyelet spoke holes
    Width 24.5mm (OUTSIDE) 19mm (INSIDE)
  • SPOKES
    Spokes SUS304
  • SPOKE NIPPLES
    Brass
  • HUBS
    Anodized
    Front hub 15 x 100 TA, 6-bolt brake mount
    Rear hub 12 x 142 Centerlock brake mount
    Shimano freehub and Yamaha Bicycles Speed Sensor
  • TIRES/TUBES
    CST E-SERIES PRO 28×1 5/8 ×1 3/8(700 x 35c) Level-6 Flat Protection Reflective Sidewall approved for eBike use
    PV Tube
  • ACCESSORIES
    Yamaha keys
    Yamaha battery charger
    LED Headlamp
    Bell
    Rear rack with front/rear fenders and integrated LED tail light
  • WARRANTY
    3-Year on Frame, Motor, Battery* Component Manufacturer’s warranty** is supported by Yamaha



SIZING & FIT

GEOMETRY
